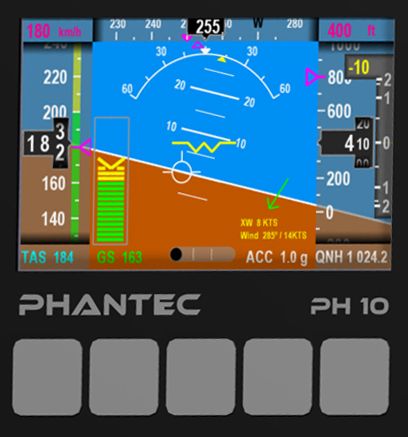

Phantec - EFIS PH 10

OVERVIEW SPECIFICATIONS

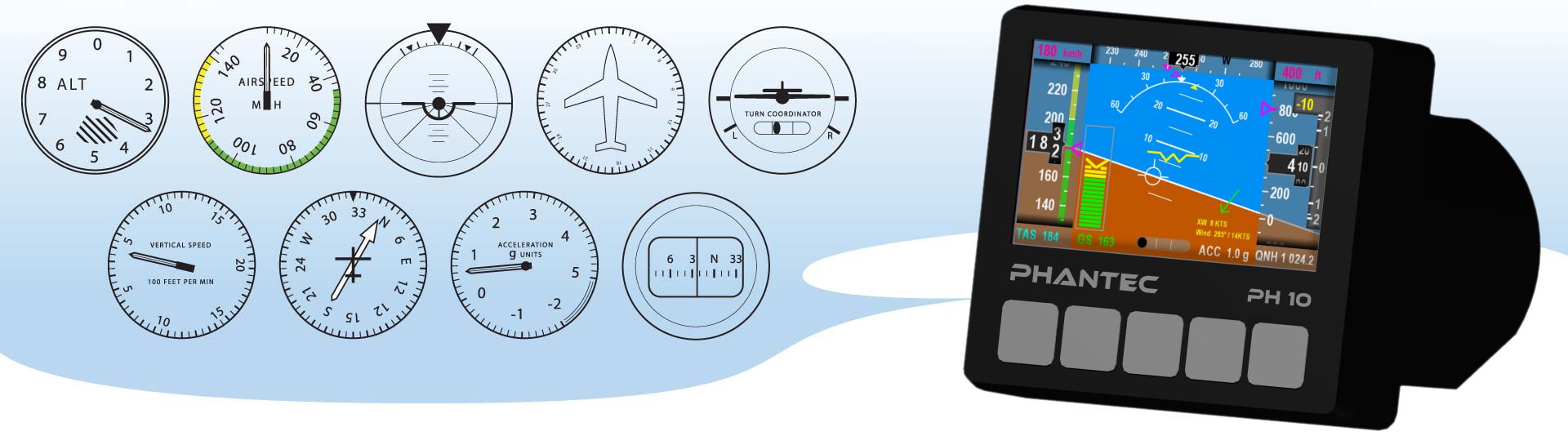

9 Instruments in 1

Altimeter

Airspeed Indicator

Artificial Horizon

Directional Gyro/HSI

G-Meter

Vertical Speed Indicator

Auto Direction Finder with GPS

Side Slip Indicator

Magnetic Compass

Designed for light-sport, ultralight and experimental aircraft

Ultra light: only 8.1 oz

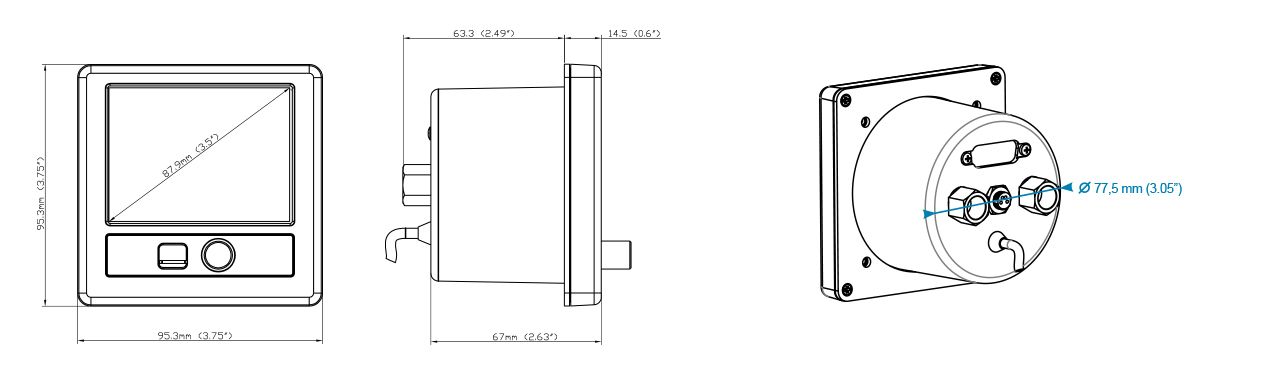

Ultra compact: only 2.49” of installing depth, and only 3.74” x 3.74” of external frame

Ultra bright: 3.5” ultra bright LCD display with 500 cd/m2 brightness

Powerful and packed with everything you need

3.5” ultra bright LCD
GPS
Solid state 3-axis gyro
3-axis accelerometer
3-axis magnetic field sensor
Pitot and Static air data sensors
UAV motion processor and sensor fusion software
Preloaded with Jeppesen database (APT, VOR, NDB)

EFIS PH 10 connects to the aircraft Pitot - Static system

When connected to the Pitot-Static, Ultra provides Air Data and advanced performance!

PFD and HSI pages

The EFIS PH 10 can display on the 3.5” LCD two different pages:
PFD and HSI. Change Page by using the rotor knob.

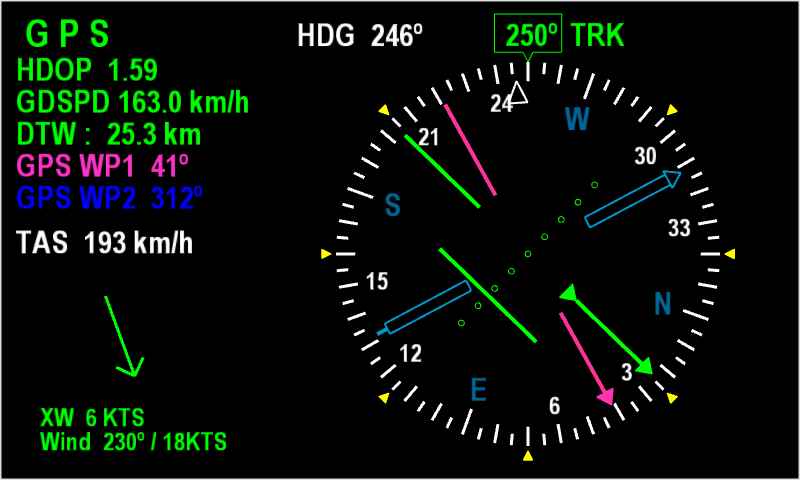

HSI

data

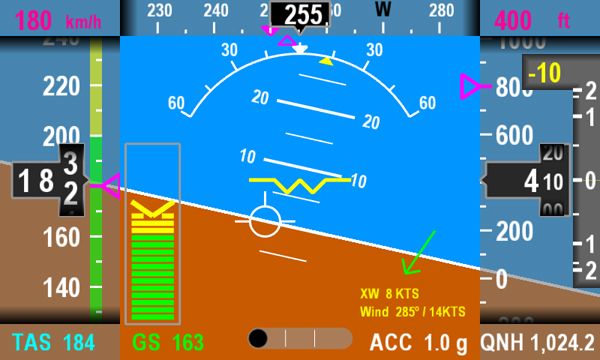

PFD

data

Your Navigation back-up!

The EFIS PH 10 also provides navigation back-up: in the HSI screen you can select from the preloaded Jeppesen Database an Airport, a VOR station or NDB transmitter as your navigation point.

It also contains an internal world magnetic model that allows it to calculate the local magnetic deviation and dip. The Ultra EFIS can calculate current position and ground speed even in the absence of GPS.
